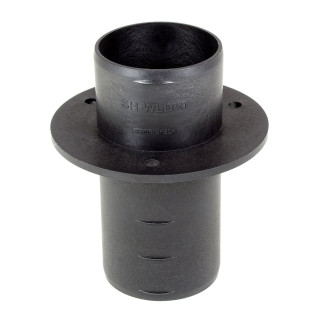

Air Duct / Floor Duct for 90mm Heating Systems
High-quality polyamide warm air duct, with which the air hose of the auxiliary heater can be guided watertight and safely through the vehicle floor.
Suitable for metal floors, as well as multi-layer floors with wooden panels or floors with insulation up to 90mm.
The air duct can of course be used not only in floors, but also in vehicle walls, e.g. for box bodies.
Installation
Create a hole of approx. 93mm in the desired position using a circular hole saw. Insert the air duct from above and screw it to the vehicle floor/wall. Seal from below with body sealant. Attach the air hose and secure with hose clamps if necessary.
If the floor structure is very thin, the air duct can also be shortened on the 80mm side.
Product Features
- made from high-quality polyamide plastic
- full dimensional stability from -40°C to 100°C
- with hook for hose attachment
- suitable for all floor and wall structures
- can be shortened for different floor thicknesses
- variable with 40mm and 80mm long nozzles
Item weight: |
0,18 kg |
