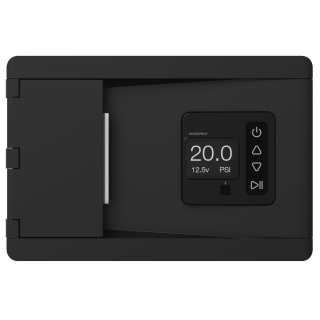

12V COMPRESSOR ATMOS - Waterproof and EMC compliant
The 12V ATMOS compressor from Scanstrut is the ultimate solution for conveniently filling your water sports equipment and much more with air. Its IPX6 waterproof rating makes it perfect for onboard use. No matter whether SUPs, inflatable boats or air seats need to be inflated: the ATMOS is quickly ready for use and does the job effortlessly.
Characteristics of the ATMOS 12V compressor
Easy to use
Set the desired pressure (up to 20 PSI/1.37 bar) and let ATMOS do the work. The compressor switches off automatically when the preset pressure is reached.
Maintenance-free brushless motor
The ATMOS's powerful, brushless motor ensures efficient and reliable performance without the hassle of maintenance.
Innovative, two-stage pump system
The two-stage pump system was specially developed for harsh maritime conditions. The first stage provides high volume at low pressure (HVLP) for rapid inflation of large objects. The second stage produces high pressure, low volume (HPLV) and is ideal for smaller toys.
Versatile application
ATMOS fits in almost every area in travel vehicles and on board and is perfect for everything from seats to inflatable awnings. Thanks to its compact design, it is always ready for use wherever you need it.
Quick inflation and deflation
The latest pump technology allows for quick and effortless inflation and deflation of water sports equipment or other "toys".
Installation dimensions
Length 297 mm,
Height 198 mm,
Installation depth 110 mm
Technical information ATMOS 12V compressor
| Parameters | Details |
|---|---|
| Operating ambient temperature | -20 ºC to 50 ºC |
| Input voltage | 12V battery system (11.5 - 14V) |
| Maximum current consumption | 12A (140W) |
| Maximum pressure | 20 PSI / 1.37 BAR |
| Maximum air volume 0-1 PSI | 350 LPM/12.3 CFM |
| Maximum airflow 1-20 PSI | 70 LPM/2.5 CFM |
| Power consumption in standby mode | 0.01 watts max. |
| Two-stage pump | Level 1 = 0 - 1 PSI Level 2 = 1.1 - 20 PSI |
| Certifications | CE, ROHS, UN ECE R10, UKCA |
| Cable length | 500mm (20") 1.5mm2 16 AWG |
| Waterproofness | IPX6 front and rear (door closed) |
| Airflow | Only flow in and out at the front of the device. Back of the device sealed |
| Security | Maximum operating time: 25 minutes (3 SUPs) Standby mode: Automatic shutdown when inactive - 5 minutes Maximum pressure output: 20 PSI / 1.4 BAR Automatic switch-off: At target pressure |
manufacturer information:
Scanstrut Limited
Dart business park 14
Exeter, EX3 0QH
Devon, UK
sales@scanstrut.com
responsible person:
Scanstrut Limited
Dart business park 14
Exeter, EX3 0QH
Devon, UK
sales@scanstrut.com
Video
Item weight: |
4,44 kg |
