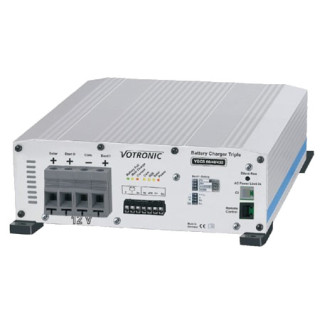

Battery Charger VBCS 30/20/250 Triple from Votronic

SKU: 21331
GTIN: 4250683617057
Category: Electrical System
Manufacturers: Votronic

VBCS Triple, the Votronic device combination of mains charger, charging converter and MPP solar controller including battery trainer.
version:

VCC charging converter with 30 A
Pb mains charger with 20 A
MPP solar controller for max. 250 Wp

Other device versions, see drop-down menu.

Available immediately
Delivery time: 3 - 4 Workdays (Other countries)

Ausführung

608,95 €

incl. 19% VAT , Free shipping to DE NL. (Paket)

Old price: 758,95 €

travel-experienced employees
shipping with DHL & GLS
everything from one source
payment by Paypal or bank transfer

Item
Description
Technical specifications
Reviews
related articles

Description

VBCS Triple by Votronic

Combines three devices in one:

VCC charging converter with charging booster
Pb network charger
MPP solar controller

Device combination of charging converter, mains charger and MPP solar controller

Battery charging while driving as well as on the mains. Triple device combination, consisting of a charging converter (also called charging booster or b2b charger), a mains charger and an MPP solar charge controller.

High charging performance, designed for common battery sizes, complement each other perfectly.

The Battery Charger VBCS Triple is in no way inferior to the Votronic individual devices. The combination leads to a particularly compact design that can be installed in a space-saving manner with little assembly effort and also protects valuable resources. Short cable routes further reduce installation costs. The technical area is tidy and clear.

The device has 10 charging characteristics for acid, gel and AGM batteries as well as for r Lithium LiFePo4 batteries. In addition, the Battery Charger VBCS Triple has a bus interface.

Available in three power levels (choose from dropdown)

device type	Art.- No	Battery- capacity adjustable [Ah]	Loading performance Mains operation Board./Start. [A]	Loading performance Charging converter Board battery [A max]	Solar- Module- Performance [Wp max.]	Solar- Module- current/voltage [A/V Max]	Loading power Solar Board./Start. [A max]	weight [g]
VBCS 30/20/250 Triple	3241	45 - 280	20.0 / 4.0	30,0	40 - 250	15.0 / 28.0	18.0 / 4.0	2700
VBCS 45/30/350 Triple	3243	68 - 420	30.0 / 5.0	45.0	50 - 350	21.0 / 28.0	25.5 / 5.0	2850
VBCS 60/40/430 Triple	3245	90 - 560	40.0 / 5.0	60.0	60 - 430	26.0 / 28.0	31.5 / 5.0	2900
Rated operating voltage (AC): 110 V to 230 V / 45 - 65 Hz worldwide
