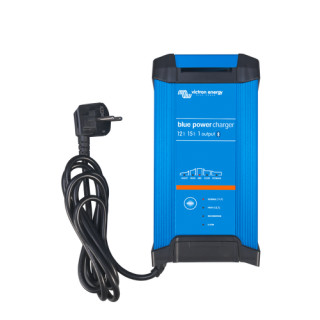

Blue Smart IP22 Battery Charger from Victron Energy

Blue Smart IP22 - Professional battery charger with Bluetooth

With the VictronConnect app, you can query the charger's status information on current and voltage via smartphone. It also allows you to adjust settings and the charger can be updated when new functions are available.

High performance, little self-consumption

The Blue Smart battery charger has a 93% efficiency. It only develops a very small amount of heat - up to 4 times less than is usual with the industrial standard. If the battery is fully charged, the power consumption drops to below 0.5 watts.

Adaptive 6-step loading algorithm:

The microprocessor-controlled, adaptive battery management automatically adapts the charging process to the type of battery usage.

Storage mode

If the battery has not been used for a while, the Blue Smart charger will minimize maintenance and battery aging. The storage mode is activated automatically if there is no discharge within 24 hours.

The float charge voltage is reduced to 2.2V / cell (13.2V for a 12V battery). This minimizes the development of gas and prevents corrosion on the positive plates of the battery. The voltage is increased to gassing voltage at regular intervals (once a week). This achieves a kind of equalization charge that prevents the battery from dying prematurely.

Suitable for LiFePo4 batteries

A separate charging current algorithm adapts the charging behavior of the Blue Smart to this type of battery.

NIGHT and LOW

In NIGHT or LOW mode, the output current is reduced to a maximum of 50% of the nominal output. With this setting, the charger works completely silently.

Overheating protection

If the temperature rises above 50 degrees, the output current from the Blue Smart charger will be reduced without switching it off.

LEDs for status Display

The Blue Smart charger has several LEDs for instant recognition of the current status.

Technical specifications

The Blue Smart I?22 Charger ist available with different specifications. Select in the dropdwon.

Input voltage range 180 - 265 VAC
Charging current, normal mode at 12V: 15/20/30 A.
Charging current, normal mode at 24V: 8/12/16 A
Charging current, NIGHT or LOW at 12V: 7.5 / 10/15 A
Charging current, NIGHT or LOW at 24V: 4 / 6 / 8 A
Efficiency 93% / 24%
Power consumption without load 0.5 W
Frequency 45 - 65 Hz
Number of outputs 1 / 3
Can be used as a power supply. Yes
Protection: polarity reversal on battery (fuse), output short circuit, overtemperature
Operating temperature range -20 to + 60
Protection class IP22
Dimensions (HxWxD) 235 x 108 x 65 mm
