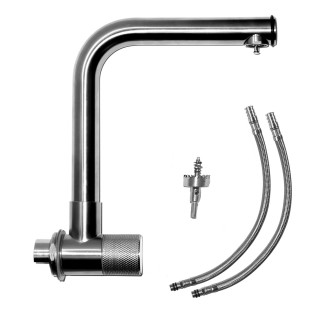

Camper faucet, made of high quality stainless steel
Elegant design and high-quality materials meet newly conceived functionality. This hot water mixer tap can be completely retracted into the basin* and helps to save space. The matching Queensize Camper sink can be mounted with the edge UNDER the worktop, so that in combination with the mixer a completely flat surface is created that can be covered with the cutout of the worktop.
Swivel and foldable
With a swivel range of 360 ° or 90 °, the fitting can be completely retracted into the QC sink. Without the annoying faucet on the work surface, there are many new possibilities of use, even where the (covered) sink is located - be it as a storage area or when, for example, the bed is to be pulled out over the surface at night, etc. pp.
START / STOP function
The innovative start / stop aerator starts or stops the flow of water by simply touching it, e.g. with the back of the hand. In this way, water can be saved easily and conveniently. A prerequisite for this is a pressurized water pump or a submersible pump with an external pressure switch.
The connection is made through a 10mm hose nozzle to a flexible hose (or 1/2 "external thread). Due to the 360 ??° rotation there are no cold / warm markings. The mixing ratio is as follows: 0 ° = mixing cartridge closed45 ° = cold water 100% 90 ° = hot water 100% Once the comfortable temperature has been found, the start / stop mechanism is used to turn the water on or off.
The fitting is made of high-quality stainless steel.
This item is the hot water faucet. For simple installations, it is also available as a cold water version (article 36018).
System pressure
max. system pressure is 4bar, we recommend a min. pressure of 1 bar.
Dimensions
Height 275mm,
projection 193mm,
hole diameter 32mm
*note
Please note: to be completely foldable into the sink, the faucet can only be installed in certain positions, see PDF
Item weight: |
1,40 kg |
