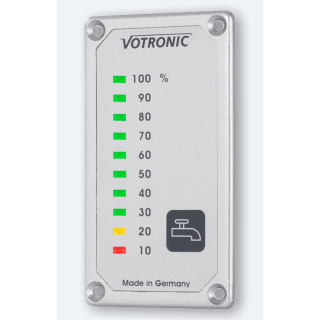

The VOTRONIC tank displays had been designed for precise level measuring, and they are suitable for any tank material and tank size. The units vary in the arrangement of the three-colour display light-emitting diodes at the range ends and in the symbols imprinted on the front panel.
The tank levels are represented in form of a clearly arranged luminous bar with 10 lightemitting diodes in three colours allowing that the tank levels can be read conveniently at a glance. The displays are working continuously, since intermediate results are displayed in variable brightness. Thus, also tendencies can be recognised at once. During refuelling and emptying of the tanks, the continuously raising or dropping display shows a direct image of the instantaneous level allowing complete control of the procedure. Also the continuous operation of the display contributes to this control. At the touch of a button, the display can be switched-on or -off, or it is switched-off automatically after approx. 10 minutes.
The display units are executed as panel version matching to the VOTRONIC modular system. The appearance (identical height 85 mm) is adapted to the other VOTRONIC display units. Of course, it is possible to retrofit a single display in the vehicle. The small dimensions of the front panel and the particularly small mounting depth of only 15 mm allow an installation at almost any location. Thus, storage space, which is located behind, can be used further.
The units are protected against reverse battery and overload and can be easily connected to the unit rear by means of terminal screws. Installation and operating manual, as well as drilling jig for the furniture cutout, are included in the standard delivery scope. These displays are suitable for 12 V and 24 V operation
Dimensions:
47 x 85 x 20mm
Assembly dimensions: 29 x 63 x 18mm
The operating manual can be downloaded here
manufacturer information:
VOTRONIC Elektronik-Systeme GmbH
Johann-Friedrich-Diehm-Str. 2
Lauterbach, 36341
Hessen, DE
info@votronic.de
responsible person:
VOTRONIC Elektronik-Systeme GmbH
Johann-Friedrich-Diehm-Str. 2
Lauterbach, 36341
Hessen, DE
info@votronic.de
Item weight: |
0,03 kg |
