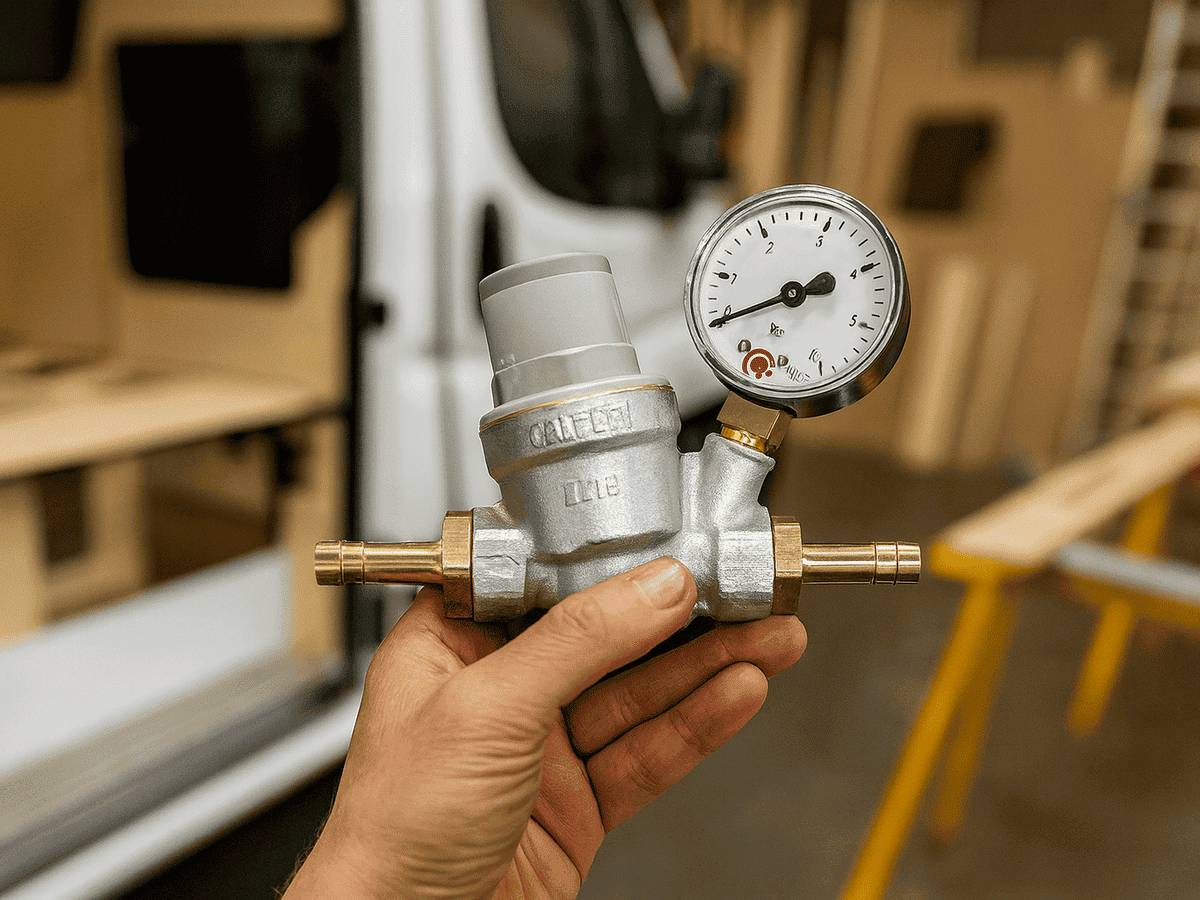

Pressure reducing valve adjustable with pressure gauge
Protect the sensitive components (boiler, drinking water filter, but also e.g. simple plastic pipe connections) of your pressurized water system. With a maximum inlet pressure of 16 bar, this Pressure reducer deals with even the most powerful pressure water pumps in RV or boat technology. Its outlet pressure is continuously adjustable between 1 and 5,5 bar.
Compact dimensions despite pressure gauge
The slanted design enables space-saving installation despite the pressure gauge.
Non-stick coating
The internal, moving parts are made of a plastic with a low adhesion value. This prevents the formation of limescale, which is the main cause of malfunctions.
Special membrane shape
A special design was chosen for the diaphragm to ensure precise pressure regulation. It also increases the life of the regulator as it is more resistant to sudden changes in pressure and more resistant to wear.
Quiet Operation
The large downstream chamber of the pressure reducing valve ensures a lower flow rate. The noise of narrowing the flow is thus noticeably reduced. In the small living room of an RV or boat, this contributes significantly to a pleasant living atmosphere.
Maintenance possible
The cartridge and strainer can be removed and cleaned to ensure long life.
Specifications:
- max. Operating pressure inlet side: 16 bar
- Pressure setting range outlet side: 1 - 5,5 bar
- Factory setting: 3 bar
- max. Operating temperature: 80 °C
- Pressure gauge scale: 0 to 10 bar
- Operating medium: water
- Connections 1/2" and 1" IT (ISO228-1)
Scope of delivery:
- Adjustable pressure reducer
- 2 x hose nozzle 10 mm
- Pressure gauge
manufacturer information:
tigerexped GmbH & Co. KG
Weseler Str. 82
Alpen, 46519
NRW, DE
info@tigerexped.de
responsible person:
tigerexped GmbH & Co. KG
Weseler Str. 82
Alpen, 46519
NRW, DE
info@tigerexped.de
Item weight: |
0,66 kg |
