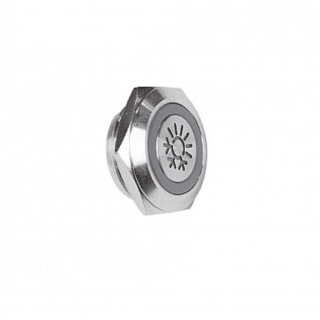

Autoterm Push Control S
The Autoterm Push Control is a compact and easy-to-use switch for controlling Autoterm auxiliary heaters. It enables different operating modes and functions depending on the heater. It also fulfills the long-held customer wish to be able to connect two control units to one heater - for example, the heater can be conveniently started from the driver's cab, while the standard control unit is installed in the living area.
Functions
Operating modes for air heaters
Power mode (standard mode): With a single or multiple click, you can choose between five fixed power levels. The color of the LED ring indicates which power level the heater is currently at.
Temperature mode: In conjunction with an external temperature sensor, a temperature of 18, 21 or 25 degrees can be achieved and maintained. In temperature mode, the highest level can also be set to "maximum power".
Operating modes for water heaters
Preheating mode: The heater runs until a certain coolant temperature is reached, then switches off the burner and starts again when the temperature drops. Here you can choose between a working time limited to two hours for the heating or continuous operation.
Easy installation
The Push Control comes in a plug-and-play design with a control module and connection cable included for quick and easy integration.
Dual control
Finally possible: The Push Control can be used as the sole control element for your heating, or combined with the Autoterm Comfort Control control unit to enable dual control for a single heating system. This means that your auxiliary heater can be easily operated in different areas of the vehicle, allowing for maximum user comfort.
Robust and waterproof
Stainless steel housing with IP67 protection class, which makes the switch waterproof and safe and durable even under extreme conditions.
Compatibility
Suitable for Autoterm Air heaters (2D, 4D, 8D, 9D) and Autoterm Flow heaters (5D, 5B, 14D).
For compatibility with older models, please contact us, specifying the serial number to info@tigerexped.de.
Available in two versions
- 6 mm thread with Molex connector (this variant)
- 12 mm thread with round connector (Item No 37898)
Diameter of the button surface 25 mm each.
Thread diameter 22 mm.
manufacturer information:
AUTOTERM SIA
Paleju street, Marupe 72
Riga, 2167
Marupes nov., LV
sales@autoterm.com
responsible person:
AUTOTERM SIA
Paleju street, Marupe 72
Riga, 2167
Marupes nov., LV
sales@autoterm.com
Item weight: |
0,11 kg |
