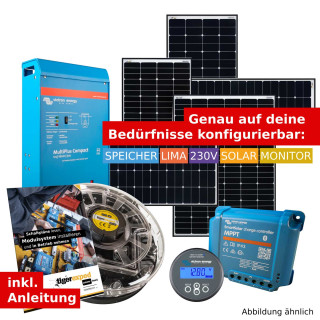

'tigerexped power basic' campervan electrics configurator - easy to put together a customised system, even as a layman

Configurator for tailored camperelectrics - to fit your individual needs.

In our configurator, even as a layperson, you can put together a perfectly coordinated electricity package. You will also receive installation instructions and individual, simplified circuit diagrams.

Best suited for vehicles with average high power consumption. Click on the yellow “CONFIGURATION” button to guide you through the individual steps with tips and hints!

Of course you can cancel/interrupt the configuration at any time and put your basics in the shopping cart.

Delivery time note: In very rare cases, shipping can take up to a week.

  • Goods ordered.
from
242,95 €
incl. 19% VAT , Free shipping to DE. shipping costs (GLS)
  • travel-experienced employees
  • shipping with DHL & GLS
  • everything from one source
  • payment by Paypal or bank transfer
Please select only one component.

We recommend Victron Energy Superpack LiFePo4 batteries. The superpacks are characterized by the special quality of the battery cells and very low self-consumption/self-discharge.

In addition to the battery, each configuration option also includes the necessary accessories (e.g. distributor for small devices, fuses, fuse holders). If you already have a battery, you can also select one of the options "without battery", which then only contain the required accessories.

Please select a maximum of 1.
The charging booster is essential for LiFePo4 batteries. On the one hand to charge the battery correctly, but above all to protect the alternator and vehicle electronics from overloading. We also recommend a charging booster for all lead-acid battery types. It ensures that the lead-acid battery is charged with the correct characteristic, regardless of what the alternator is designed for. In this way, the battery is always fully charged without the risk of overcharging it. When making your selection, make sure that you choose the right one for either a vehicle with a 12V or 24V electrical system. Most cars and vans are 12V chassis, trucks are usually 24V chassis. It is also important to choose the charge booster that matches the alternator output. The rule of thumb is: You can use 30-50% of the rated output of the alternator for the charging booster. Most reasonably modern vans have a 100A+ alternator. A 30A charging booster is possible here without hesitation, from approx. 120A you can also choose 50A. For example, for an old VW T3 that may only have a 35A, 55A or 70A alternator installed, you have to choose a small, 20A or 30A charging booster accordingly. With 24V vehicles it is twice as much on the 12V side. If the truck's alternator is rated at 55A, you can afford up to 50A at 12V. Older vehicles in particular have low-power alternators. Be careful not to overload them. If you are unsure, contact our technical advice.
Please select a maximum of 1.

Here you can choose between different variants of 230V use. Choose a battery charger (Victron Energy IP series) that can charge your body battery from 230V shore power and at the same time supply your 12V consumers with power.

If you need 230V in your camper without being connected to shore power, you can choose an inverter (Victron Energy Phoenix series). The small 250VA inverter with a single socket permanently installed in the device, has a permanent output of approx. 200W.

The Phoenix inverter is sufficient for the little comfort that you don't want to miss even when camping, electric toothbrushes, shavers or any other consumer that can only be charged or operated with 230V. Please make sure not to exceed 200 watts.

The inverter 500VA / 800VA / 1200VA (Victron Energy Multiplus) with integrated battery charger and integrated mains priority circuit has a permanent output of approx. 400W / 600W / 1000W, but above all you can connect several sockets and consumers in your camper. As long as there is a connection to the shore power, this is switched through to all your sockets/consumers and you can use the full power of the shore power socket (usually 16A / 3600W).

If you use the inverter independently without shore power, the priority circuit automatically switches the sockets to the inverter with 400W / 600W / 1000W.

What you are still needing are one or more sockets. Since we don't know how much you want to install and which ones best suit your build, these are not included. Click here for our socket range.

The 230V modules always contain the appropriate RCBO (colloquially called FI switch) or two of them with the 500VA / 800VA / 1200VA (1P+N & 2P+N) variants.

Please select a maximum of 1.
If you want to be self-sufficient with solar, you can choose between different dimensions of solar power here. The matching Victron Energy MPPT smart solar charge controller for each system is included. The MPPT controller has a Bluetooth interface, so you can see the current status and statistics from the last 30 days on your smartphone. Our black tiger solar modules have the highest efficiency and an optimized temperature coefficient for a really high yield. If the modules available here do not suit you or you need two different sizes, there is also a solution. Just contact our technical team.
Please select a maximum of 3.
Our solar sets always contain mounting brackets for the panels, a cable seal, solar cable and MC4 connector as well as an adhesive set to glue mounting brackets and cable seals. Mounting sets for 2 panels: Here we assume that you can mount both panels directly next to each other. If you have chosen two panels but cannot mount them directly next to each other because there is for example a skylight in between, then choose the mounting set for 1 panel and an additional mounting bracket for 1 panel. Depending on how far apart the panels are, you may need a cable extension for one of the two panels, or if they are very far apart, a second roof duct. Our technical team will also be happy to support you with this question if you are unsure.
Please select a maximum of 1.
The monitor module keeps you up to date. Batteries are like a bucket with a lid, you know how much fits in, but not how much is currently in it. The monitor module keeps track of what is loaded into the battery and what you use from it, so the monitor module always knows how full your battery really is. You can see the level of your battery, and if you are currently using electricity, it tells you how long it takes until the battery is empty. You can also see how much is loaded into or out of the battery at the moment. It is also possible to monitor the voltage of the starter battery. Here you can choose between a variant with a small display or without a display. A Bluetooth connection is possible with both variants and you can see all the information with your smartphone.
Your configuration

incl. 19% VAT , Free shipping to DE. shipping costs (GLS)

Description

tigerexped power basic configurator - This is how it works!

The self-configurable electrical packages consist on the one hand of basic components that are needed in every electrical system, and on the other hand of optional devices and functions that you can configure according to your personal needs. You can select your requirements in the configurator. It guides you through the individual components, gives you tips and hints and at the end you receive a finished and safely functioning system.

You don't have to pay attention to anything when configuring - no matter which options you select, the components and devices are preselected so that they cannot overload each other.

We make installation easier for you with installation instructions and easy-to-read circuit diagrams, so that hardly anything can go wrong during installation.


power basic vs. power pro

In contrast to tigerexped power pro, this is a modular system for averagely high demands on the electrical system. If you want to

  • cook on induction,
  • work remotely in your camper with two people all day on your laptops
  • really want to live completely, self-sufficiently and, if possible, without sacrificing any comfort in the vehicle,

you are better served with a power pro system . Our technicians will advise you on the phone and personally put together a system according to your wishes.

Request advice here


The mandatory partsof the basic system

The following components are mandatory parts of a power Basic complete package:

The TEXU200 central electrics. This is a central electrical unit designed for a maximum continuous load of 2000VA/200A. It is the heart of the system and connects all components together.

A battery main switch - serves to switch off the system if the system is not used for a long period of time.

A small distributor to which the consumers are connected (lighting, refrigerator, auxiliary heater, USB sockets, etc.)

In a system with an AGM/Gel battery, a deep discharge protection is also included; in LiFePo4 batteries, this is integrated directly into the battery.



Select additional components individually

You can now put together the other components and devices around these basic components to suit your personal needs.

In each configuration step you will receive additional information to help you make your selection.


Click now on the yellow “Configuration” button. Button!
