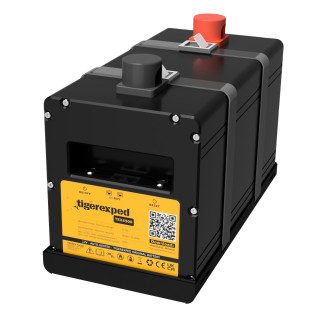

LiFePO4 Battery 165Ah 12V
Smaller and lighter than conventional LiFePO4 batteries – the tigerexped battery saves valuable payload and space in your travel vehicle. Or vice versa: With the same external dimensions, you can now get an impressive 165Ah instead of, for example, 100Ah, while still saving weight.
But that's not all: Double safety and optimized usability and storage options make the tigerexped battery truly revolutionary.
Features of the tigerexped LiFePO4 Battery at a Glance:
Compact and lightweight like never before.
Exceptional high-quality cells and a unique housing design enable outstanding energy density.
Self-heating
When the typical LiFePO4 temperature threshold for charging is exceeded, the tigerexped battery can quickly regain energy. This ensures that your devices in the vehicle can be powered again in a short time rather than hours. Our cells are in direct contact with a heating mat, which receives the first energy from a charge booster or other power sources once the cell temperature drops below 7°C.
Tested under real-world conditions in northern Sweden at a battery interior temperature of -38°C.
Extremely low self-discharge rate
Your tigerexped battery can withstand longer idle periods without damage or the need for recharging. Bluetooth integration has been deliberately omitted, and an ultra-low-consumption BMS is used. A unique feature is the on/off switch on the battery casing, allowing you to completely shut off the battery. This makes leaving the vehicle for an extended time much less stressful.
Double safety
To protect against short circuits and overload, the tigerexped battery is equipped not only with BMS/software-based protection but also with an additional hardware safeguard. This hardware disconnects the connection reliably in case of an error, protecting you and your vehicle.
Communication with Victron GX Devices
The convenience of Victron GX devices has become indispensable in travel vehicles. If you wish to leverage these benefits, full integration (DVCC) with our optional battery computer is easily possible.
Upgradeable
The tigerexped battery can be kept up to date with software updates via RS485.
Series-connectable
Series connection of up to 4 tigerexped LiFePO4 batteries / 48V is no problem.
Screwed aluminum housing
Rugged metal housing while being thermally insulated with two entirely independent layers.
Additional Included Components
-
Durable, Rotatable Terminal Covers
Two cable entry points ensure secure connection of consumers and optional battery interconnection.
-
Robust Slim-Line Mounting Bracket
No wasted space! Allows mounting of multiple batteries in close proximity or tight spaces (without additional mounting brackets).
Equipped with laser-cut rubber mounts and fastening straps. Ensures perfect fit and secure attachment of the battery in your travel vehicle.
-
RJ45 Cable, 30cm Length
Data transfer cable for connecting two batteries.
Specifications
- Nominal voltage: 12.8V
- Nominal capacity: 165Ah / 2112Wh
- Max. continuous charge and discharge current: 135A
- Integrated heating
- Interfaces: Software update via RS485, full Victron Energy GX integration
- Protection: Dual-stage short circuit and overload protection (BMS/software, hardware safeguard)
- Included accessories: Mounting bracket with straps, rotatable terminal caps
- Housing dimensions: 332 x 167 x 191 mm
- Weight: 19kg
