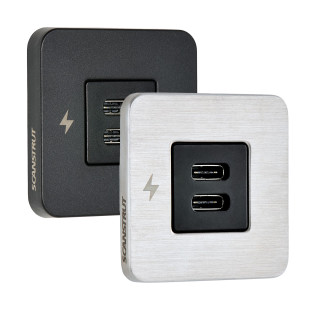

TILE - Double USB-C charger for 12/24V
Scanstrut TILE offers elegant, high-performance charging solutions specifically designed for boat and RV interiors. With compact dimensions of 40x40mm and easy installation with a 29mm hole saw, TILE combines functionality and style, making it the ideal choice for equipping your travel vehicle.
Charging power
Tile USB charges quickly, with 36W at 12V or up to 60W at 24V.
USB-C output
60W max. on 24V system
36W max. on 12V system
Universal
Universally suitable for all USB-C ports.
Fast charging (60W max.) of up to 2 devices at the same time.
Important information
To maximize charging performance, use the cable supplied with the tablet, phone, etc. Cell phones will charge at the same speed on 12 or 24V, but to get the full 60W power for laptops, a 24V system must be used.
TILE USB-Chargers are not waterproof and are designed for indoor use only. For waterproof applications on the outside of your vehicle or on board in areas subject to splashing water, see Scanstrut's "Flip" series.
Technical Specifications
Input voltage 10-32V DC (12/24 V system)
Input current max. 6A (10A fuse recommended)
Output 12V system: 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A MAX
24 V system: 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A, 15 V⎓3 A, 20 V⎓3 A max
24 V system: 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A, 15 V⎓3 A, 20 V⎓3 A max
Standby consumption 0.01 W
Certification
CE, FCC, UKCA, C-Tick, ROHS, WEE
manufacturer information:
Scanstrut Limited
Dart business park 14
Exeter, EX3 0QH
Devon, UK
sales@scanstrut.com
responsible person:
Scanstrut Limited
Dart business park 14
Exeter, EX3 0QH
Devon, UK
sales@scanstrut.com
Item weight: |
0,10 kg |
|
Dimensions packing
( l × w × h ):
|
9,00 × 5,00 × 5,00 cm |
