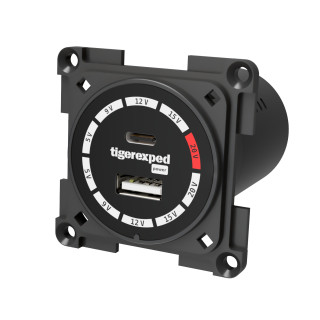

USB-C / USB-A charging socket with buck-boost converter
What is the difference to a normal USB charging socket?
In most cases, travel vehicles are equipped with an electrical system of 12V. The problem: Powerful devices, and especially those with fast-charging protocols, often require more electrical power, both in terms of voltage and current, than a standard 12V system can normally deliver. Inverters and power packs or bulky adapters are usually used here, which may make the electrical installation unnecessarily complex and expensive.
The convertiger 100 solves this problem without going through the conversion to alternating current. Thanks to the buck-boost converter, it increases the 12V input voltage to up to 20V / 5A (100W max.) at the USB-C output if there is a corresponding requirement via the device and cable*. This means that fast charging protocols such as Quick Charge or Power Delivery can finally be used without any problems in the 12 V System.
So you don't necessarily need an extra inverter for these devices. This function is also valuable in Exmos driver's cabs, which have high-consumption devices for navigation etc. running.
Charging at 100W depends on factors such as the requirement of the device being charged (considering its current charging state), the cable used, input voltage, and ambient temperature. Install the charger in a well-ventilated area, as excessive temperatures will automatically throttle down the power output.
If the power consumption of a device consistently remains in the 100W range, the input voltage should be 24V. For a 12V system, it is preferable to operate via an inverter for this application.
Auto light off
The current charging voltage is displayed by means of an LED display for 20 seconds after plugging in the charging cable. After this time, the display goes out automatically. After a further 10 seconds, the backlight is also switched off automatically. The charging socket thus produces no light that disturbs sleep, or consumes electricity unnecessarily (albeit minimally).
Compatible with Inprojal built-in elements.
Our Buck-Boost charging socket fits into the Inprojal 20.000 Installation range and thus fits seamlessly into the equipment of your vehicle.
Specifications
Input : DC 9-30V
Output : 100W max.
USB-A QC3.0
USB-A Output : 5V/3A; 9V/2.22A; 12V/1.67A (20W Max)(QC3.0 Standard)
USB-C PD3.0
USB-C Output : 5V/3A; 9V/3A; 12V/3A; 15/3A; 20V/5A (100W Max)
*The charging speed always depends on all components, including the cable used.
Video: Das zeichnet den convertiger 100 aus

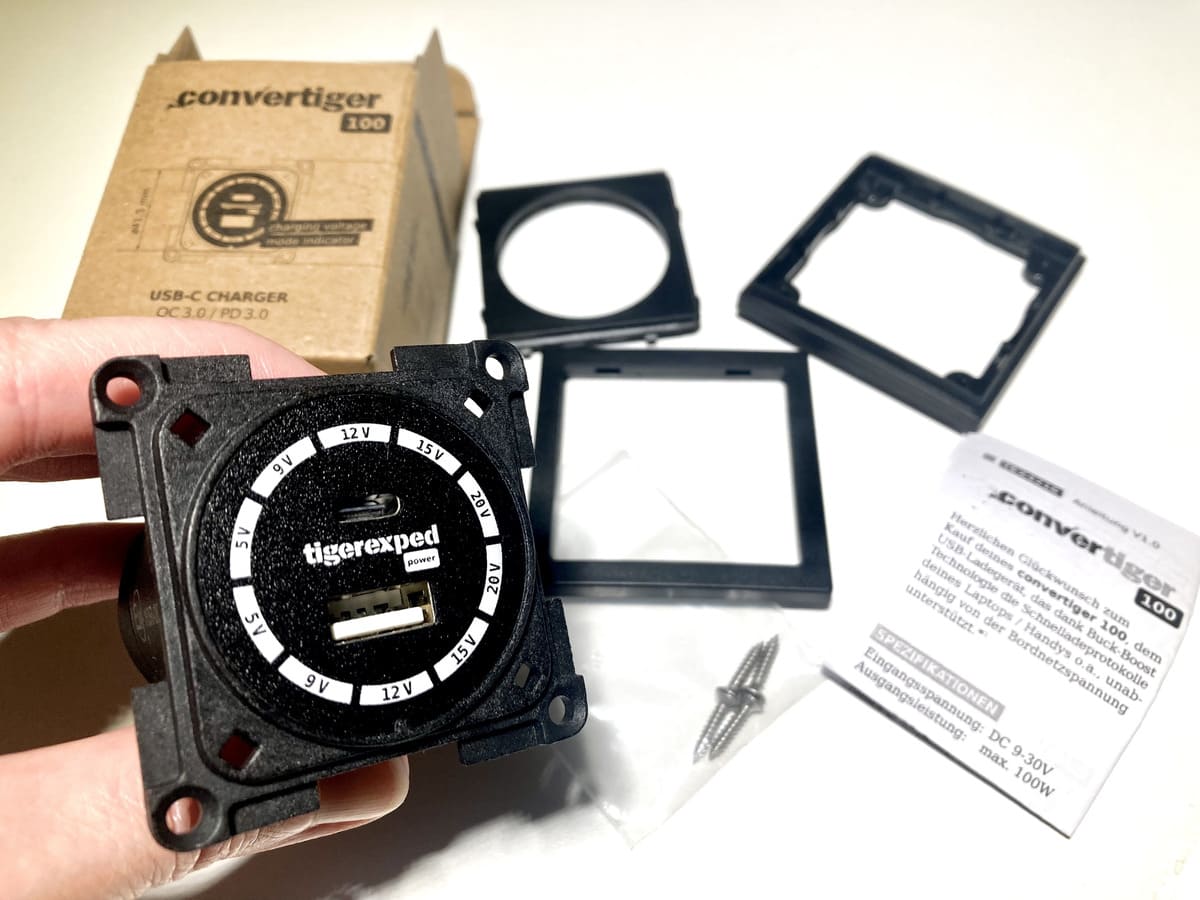

Video: convertiger 100 Einbau & Vergleich Inprojal - Berker
Im Online-Magazin: Infos zum Camperausbau, die dir weiterhelfen werden
Item weight: |
0,10 kg |
