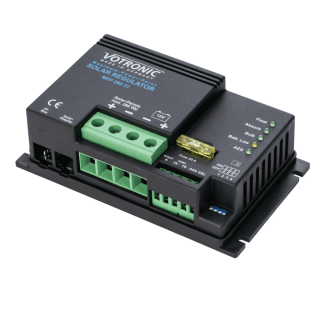

Votronic Solar Charge Controller MPP 260 CI

Votronic Solar Charge Controller MPP 260 CI

The Votronic Solar Charge Controller MPP 260 CI is ideal for solar modules with a maximum output of 260Wp, a module current of up to 15A and a module voltage of maximum 60V.

It offers two charging outputs: The main charging output charges lead-acid, gel, AGM and modern lithium LiFePO4 batteries. The second charging output is used to maintain the starter battery.

The Votronic MPP-Solar charge controllers are specially developed for mobile homes, caravans and boats and act as a link between solar module(s) and battery(s).

Votronic MPP 260 CI - Functions and advantages

Increased charging efficiency
Modern microprocessor technology increases the charging current by 10% to 30% (efficiency > 95%) compared to conventional controllers, which is particularly advantageous in cool temperatures and diffuse lighting.

Flexible charging
Suitable for lead-gel, lead-AGM, lead-acid and LiFePO4 batteries, as well as for connected consumers.

Safe charging voltage
Peak-free charging voltage prevents overcharging of the batteries.

Two charging outputs
Main charging output for the on-board battery and trickle charge (max. 1 A) for the starter battery with overcharge protection.

Automatic protection functions
Protection against overload, overheating, reverse polarity and battery back discharge.

Parallel and buffer operation
Compliance with charging regulations even when consumers are being used at the same time.

Overcharge protection
Automatic adjustment of the charging current when the battery is full, immediate recharging when power is being used.

IU1oU2 charging characteristic curve
Prevents harmful acid stratification and ensures equalization of the charging of the Battery cells.

Charging cable compensation
Automatic compensation of voltage losses on the charging cables.

On-board network filter
Compatible with wind and motor generators, mains chargers and alternators.

CI bus connection
Display of all relevant data on a central vehicle display.

Measurement output for EBL
Enables the use of a built-in solar power display to control the system.

Battery temperature sensor connection
Adaptation of the charging voltage to the battery temperature to optimize the charge / protect the battery at different temperatures.

Ready to plug in for Solar display devices
Compatible with the Votronic LCD solar computers for optimal system control.

Developed and manufactured in Germany

Votronic MPP 360 CI charging programs:

• Gel: For gas-tight gel/dryfit batteries with high charging voltage and longer holding times.
• AGM: For sealed AGM batteries with high U1 level and coordinated holding times.
• Universal: For lead-acid/wet/AGM batteries, suitable for mixed mobile and stationary Applications.
• LiFePO4: For lithium LiFePO4 batteries with their own BMS and protective circuit.

 Scope of delivery

• Votronic solar charge controller MPP 260 CI
• Operating instructions in German

Features of Votronic MPP 260 CI solar charge controller at a glance

• 3 charging programs for lead-acid/gel/AGM
• 5 charging programs with temperature protection for current LiFePO4
• Overcharge protection
• Reverse current lock (night operation)
• On-board network filter for parallel operation with other charging sources
• Protection against overload, overheating, short circuit, reverse polarity
• Automatic compensation of voltage losses on the charging cables
• Overvoltage limitation to protect sensitive consumers
• Lead temperature compensation/LiFePO4 protection
• Connection Solar Computer S, VPC, Bluetooth Connector, ready to plug in
• Output for EBL solar power display (except 24V)
• Dimensions (L x W x H): 131 x 77 x 40 mm


Specifications

• Battery nominal voltage lead: 12 V
• Recommended minimum battery capacity lead: > 60 Ah
• Battery nominal voltage LiFePO4: 12.0 - 13.3 V
• Recommended minimum battery capacity LiFePO4: > 45 Ah
• Solar module power (Pmax): 40…260 Wp
• Solar module current max.: 0 - 15.0 A
• Solar module voltage
