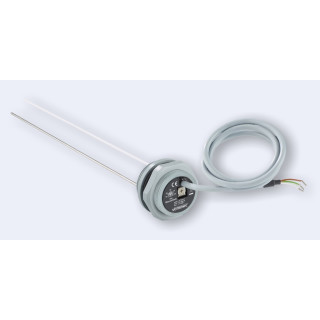

These tank sensors had been designed particularly for level measuring of water and hydrous media (fresh water, sewage water, grey water, industrial water, feces) in metal or plastic tanks. Thus, they are universally applicable. The measuring electrode can be easily shortened to the height of the tank, and the precise “full” adjustment is effected by an adjusting device at the unit. In case of Tank Electrode 12-24 K or 15-50 K also a “dry” adjustment is possible with the help of a scale.
Easy adaptation to the existing tank height (min 12cm to max 24cm)
Linear, continuous signal of the level
Suitable for 12 V and 24 V continuous operation
Can be installed at bottom or top of the tank
Dimensions:
Mounting diameter: 63 mm (or. PG 29)
Flange diameter: 46,5 mm
Connection Cable: 75 cm
Here you can download the manual
manufacturer information:
VOTRONIC Elektronik-Systeme GmbH
Johann-Friedrich-Diehm-Str. 2
Lauterbach, 36341
Hessen, DE
info@votronic.de
responsible person:
VOTRONIC Elektronik-Systeme GmbH
Johann-Friedrich-Diehm-Str. 2
Lauterbach, 36341
Hessen, DE
info@votronic.de
Item weight: |
0,50 kg |
